Float Valve

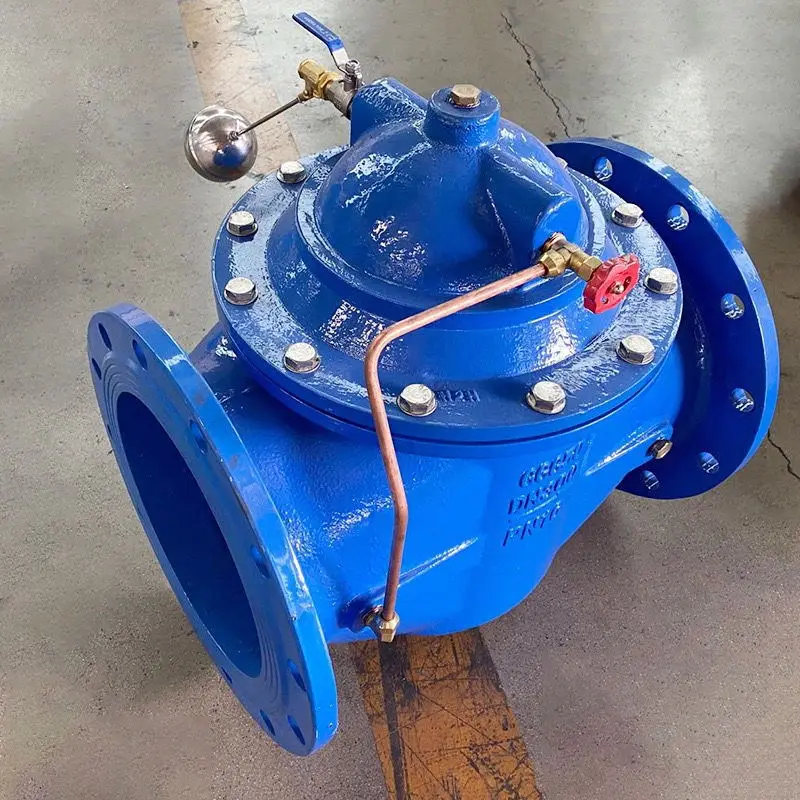

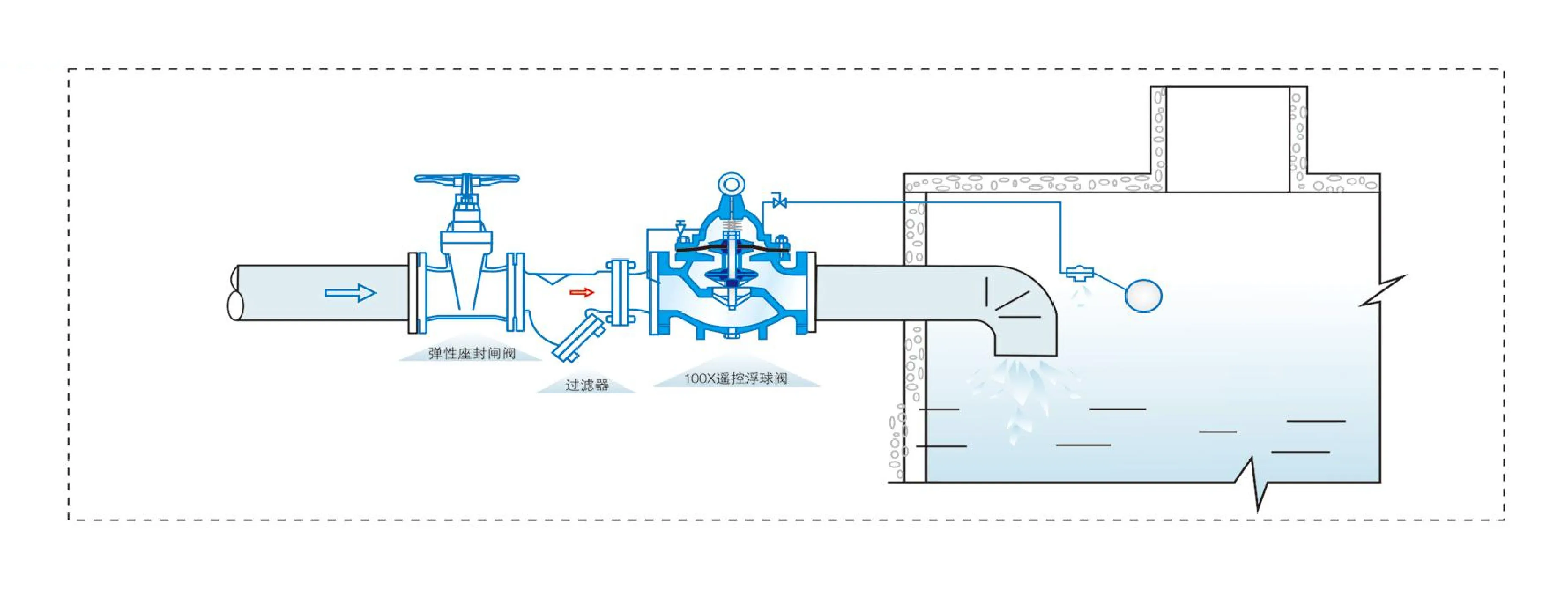

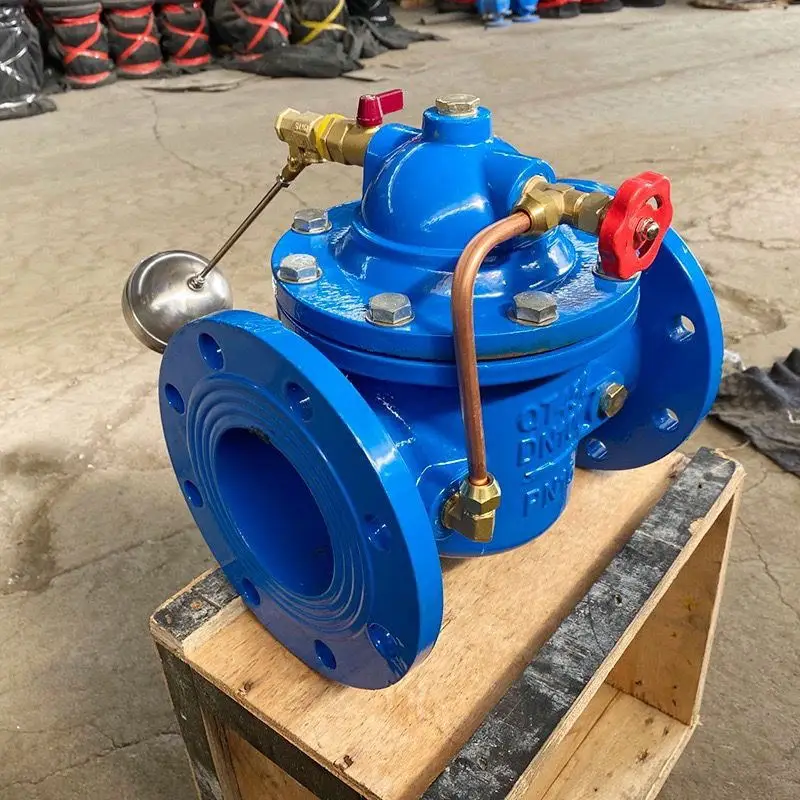

The 100X remote control float valve is a hydraulically operated valve with multiple functions. it is mainly installed in the water inlet of the pool or elevated water tower. When the water level reaches the set height, the main valve is controlled by the float pilot valve to close the water inlet and stop the water supply. When the water level drops, the main valve is controlled by the float switch to open the water inlet and inject water into the pool to realize automatic water replenishment, Precise liquid level control, free from water pressure interference; 100X remote control float valve can be installed, maintained, adjusted and inspected at any position with the height of the pool and the use space, reliable sealing and long service life.

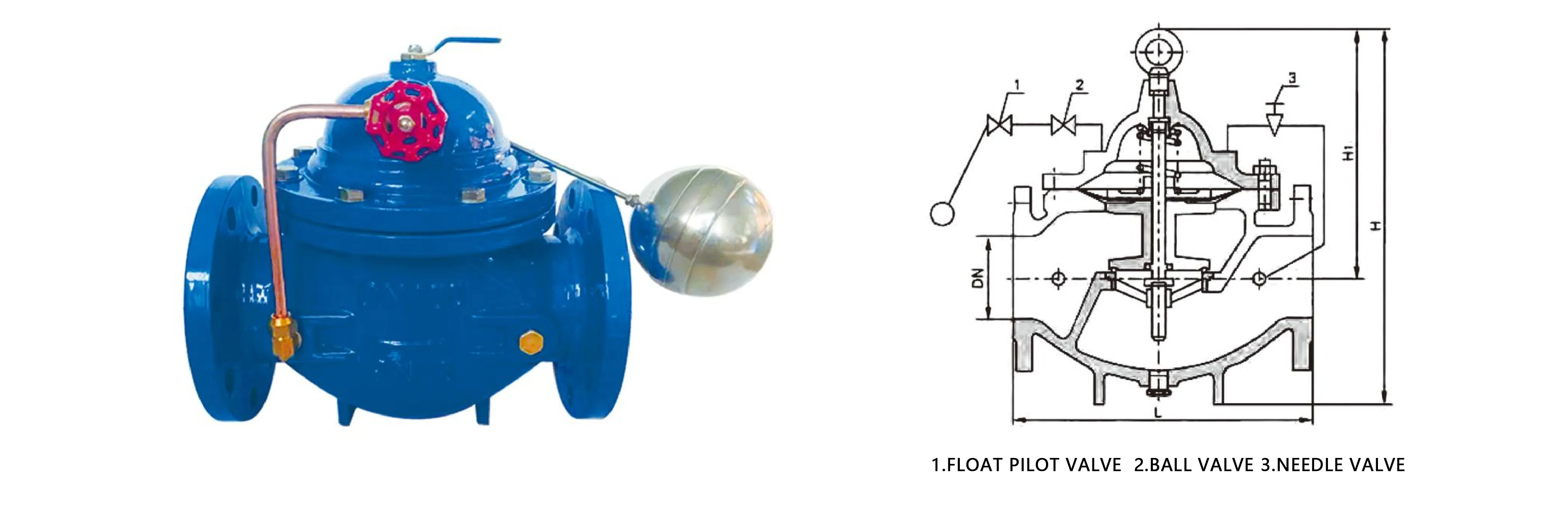

When the pipeline is fed water from the inlet end, because the needle valve, ball valve and float valve are normally open, water enters the pool through the needle valve, control room, ball valve and float valve. At this time, no pressure is formed in the control room, the main valve is opened, and the water tower (pool) is supplied. When the water rises to the set height, the float ball will be closed, Pressure rises in the main control room, push the main valve to close, and stop the water supply. When the water level drops, the float ball valve is reopened, then the pressure drops, and the main valve is reopened to continue the water supply and maintain the set liquid level.
