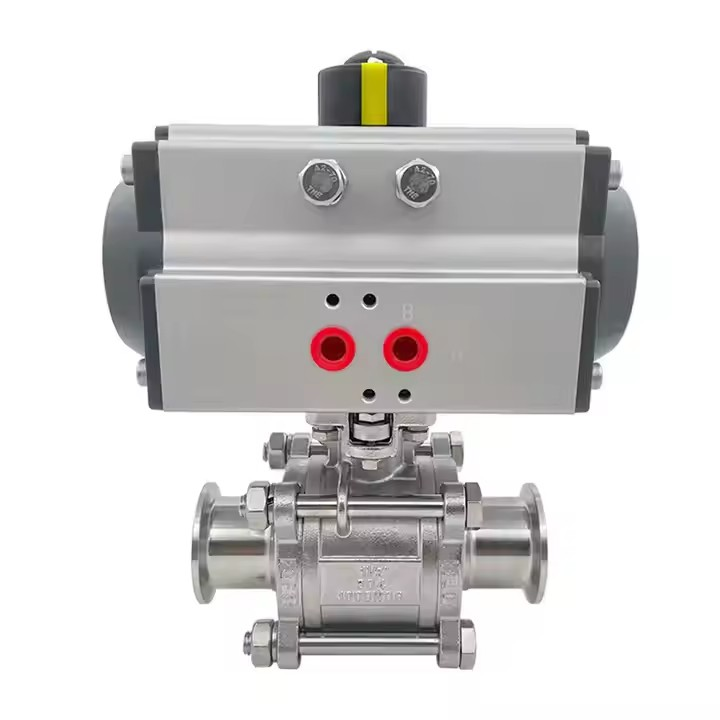

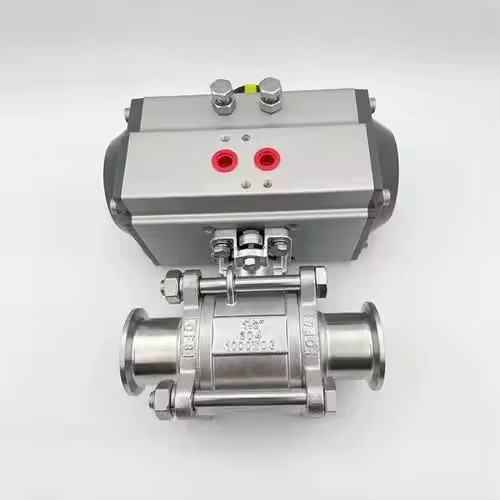

Stainless Steel Pneumatic Ball Valve
Description
Specification
It is mainly used in food processing.beverage,dairy products. phamacy. wine making.cosmetics,chemical industry and semiconductor industry. Valve body: full bore Temperature:20℃-150℃ Material :316L Certification 3-A-68-00,PED、97/23/EC Sealing material: PTFE、TFM 1600,UHMWPE Torque:1N.M—100N.M
|
Size
|
1/2″-6″,DN15-DN100
|
|||
|
Pressure
|
8-10bar/10kg
|
|||
|
Pneumatic actuator
|
single acting,double acting,aluminium,stainless steel
|
|||
|
Connection
|
tri-camped,welded,threaded,DN,SMS,ISO,IDF,BPE,RJT
|
|||
