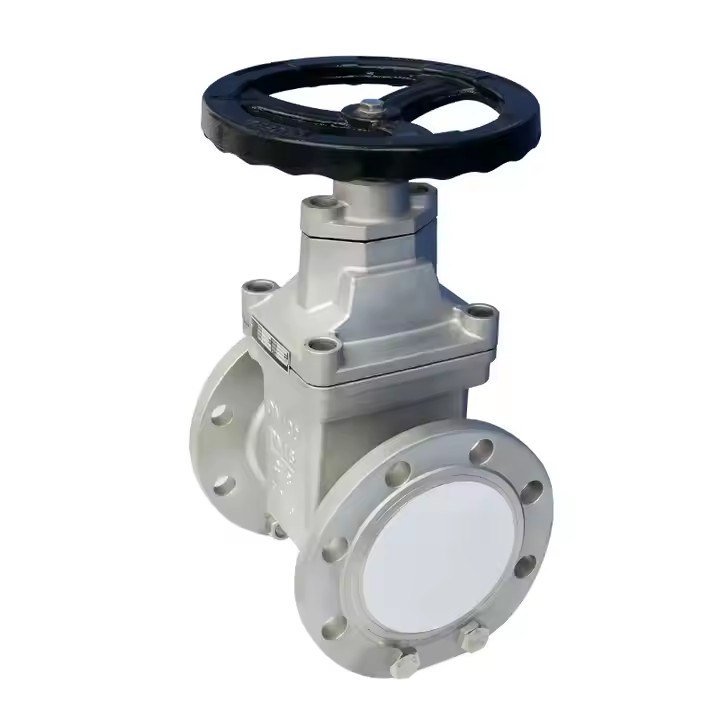

Stainless Stell Gate Valve
Description
Product description:
Stainless steel gate valve is a commonly used valve in pipeline systems, characterized by good sealing performance and durability. The gate valve made of stainless-steel material has good corrosion resistance. The sealing surface of the soft sealing gate valve is made of elastic material, which can ensure good sealing performance and reduce leakage. Stainless steel soft seal gate valves can be driven in different ways according to user needs, such as manual, pneumatic, electric, etc.
Technical parameters:
| Nominal Diameter | DN50~DN1000 |
| Pressure level | 1.0MPa-1.6MPa |
| Main material | Stainless steel (such as 304, 316, etc.) |
| Applicable temperature | -0°Cto80°C; |
| Design manufacturing standard | GB/T32290; GB/T 12232; CJ/T 216 |
| Structure length standard | GB/T12221 |
| Connecting size standard | GB/T17241.6; JB78 |
| Pressure test standard | GB/T13927 |
| Transmission mode | Manual, bevel gear, electric, pneumatic |
| Applicable Medium | Water, steam, gas, oil, etc. |
